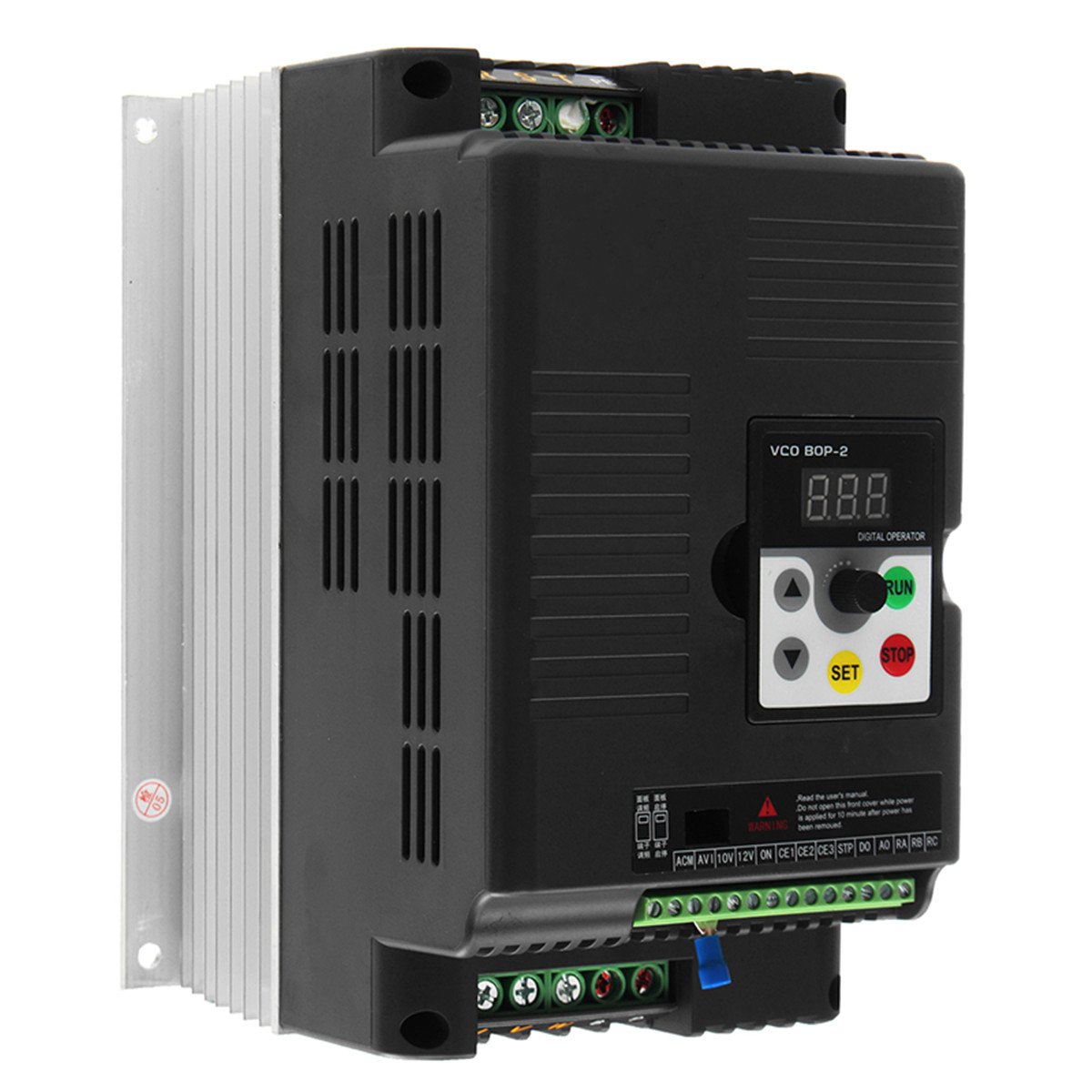

4.0KW 220V Variable Frequency Inverter Single To 3 Phase Output Motor Speed Drive

Specifications:Name: Frequency ConverterPower: 4.0KWInput: AC 1PH 220V 50Hz-60HzOutput: AC 3PH 0V-220VTemperature: -40°C~+70°CModulation: Space Voltage Vector ModulationCooling method: air-cooled, with fan controlColor: BlackSize: 210mm*175mm*116mm Features:-The control panel is simple and easy to understand.-Quick heat dissipation and longer service life.-Through the built-in PLC or control terminals to achieve multi-speed operation, operation panel, controlterminals can be switched through a variety of ways.-LED display set frequency, output frequency, output voltage and output current and other parameters.-Strong anti-interference ability, large low-frequency torque, high precision] Safety Precautions:1. Before wiring, make sure the input power is off2. Wiring operation, please professional electrical engineering personnel to carry out3. Ground terminal, be sure to ground4. After the emergency stop circuit wiring is completed, be sure to check whether the action is valid.5. The output line of the inverter should not be connected with the shell, and the output line must not be short-circuited6. Check if the voltage of the AC main circuit power supply matches the rated voltage of the inverter.7. Do not perform withstand voltage test on the inverter8. Please connect braking resistor according to wiring diagram9. Do not connect the power cord to the output U, V, W terminals10. Do not connect the contactor to the output circuit11. Be sure to install the protective cover before power on. When removing the cover, be sure to disconnect the power supply.12. Select the inverter with reset and retry function, do not approach the mechanical equipment, because the alarm will suddenly restart when stopped13. After confirming that the operation signal is cut off, the alarm can be reset. Alarm reset under running signal status, inverter hasMay suddenly start14. Do not touch the terminal of the inverter, there is a high voltage on the terminal, it is very danger15. Don't change wiring and terminal disassembly after power on16. Cut off the main circuit power before inspection and maintenance17. Do not modify the inverter  Packing included: 1 x Frequency Converter1 x English Manual    More Details:
